New design painted green cuplock scaffolding/ top cup scaffolding
Cuplock scaffolding system
| item | Dia /mm | Weight/kg | Weight/ lbs |
1.0M vertical | 3.2 | 5.63 | 12.41 |
1.5M vertical | 3.2 | 8.11 | 17.88 |
2.0M vertical | 3.2 | 10.58 | 23.32 |
2.5M vertical | 3.2 | 13.06 | 28.79 |
3.0M vertical | 3.2 | 16.15 | 35.6 |
0.9M ledger | 3.2 | 3.38 | 7.45 |
1.0M ledger | 3.2 | 3.80 | 8.38 |
1.2M ledger | 3.2 | 4.49 | 9.9 |
1.3M ledger | 3.2 | 4.75 | 10.47 |
1.5M ledger | 3.2 | 5.51 | 12.15 |
1.8M ledger | 3.2 | 6.46 | 14.24 |
2.5M ledger | 3.0 | 8.82 | 19.44 |
1.3Mx2.0M brace | 3.2 | 7.44 | 16.4 |
1.8Mx2.0M brace | 3.2 | 8.47 | 18.67 |
2.5Mx2.0M brace | 3.2 | 10.18 | 22.44 |
565mm bracket | 3.2 | 6.27 | 13.82 |
795mm bracket | 3.2 | 7.22 | 15.92 |
| 1.5x320x76x3000mm plank | | 24 | 52.91 |
| 1.5x320x76x2500mm | | 20 | 44.09 |
| 1.5x320x76x2000mm | | 16.6 | 36.6 |
| 1.5x320x76x1000mm | | 12.8 | 28.22 |
| Top cup | | 0.5 | 1.1 |
| Bottom cup | | 0.245 | 0.54 |
| Forged blade | | 0.245 | 0.54 |
| Jack base | 38*600mm | 3.18 | 7.01 |
Cuplock system advantage:
Cuplock system - Easy to STAND - without the use of nuts and bolts
or wedges. The locking device is formed by two cups. Single node
point action of unique locking make 'cuplock/Cuplock' a fast,
versatile and optimized system of scaffolding
Cuplock Scaffoldings Features:
Easy to assembling,save time
Versatile- suitable for access or formwork support.
Quick fastening of horizontals. Only 4 horizontals can be fastened
at one time with firm clamping action of top cup making the joint
rigid.
Low maintenance.
Quick/Fast/Solid erection and dismantling results in time and labour saving.
Large loads carrying capacity.

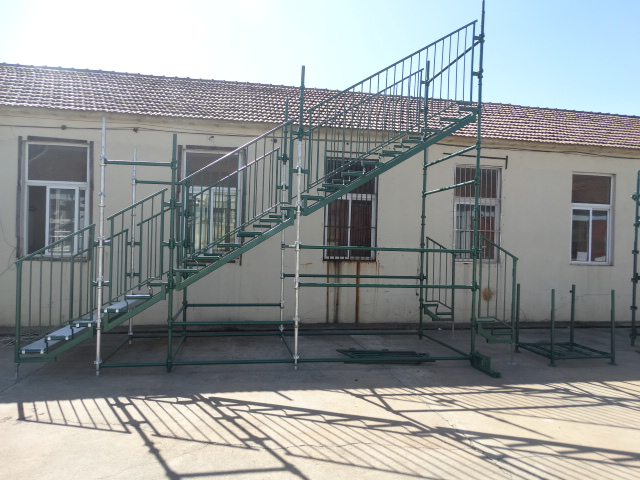

Picture show:
Our Service:
Rizhao Weiye Tools Co.,ltd
Rizhao Weiye Tools Co.,Ltd. is a leading manufacturer of
scaffoldings,scaffolding couplers,other scaffolding accessories.
Frame system,Formwork,Fence,Metal Pallet etc since 1990.Covering
130,000square ,workshop 60,000square.
Main products:
1.Scaffoldings:Cuplock scaffolding,Ringlock scaffold,Kwikstage
scaffold.Haki scaffold system.
2.Scaffold couplers:forged coupler ,pressed coupler ,swivel coupler
,drop forged coupler ,beam coupler ,plank coupler ,double coupler
,single coupler
3.Frames scaffolding:Ladder type and door type also accept clients
request to make.
4.Aluminum Plank ,Metal Plank ,which match with scaffoldings.
5.Adjustable scaffolding props.solid jack base,hollow jack base
,swivel jack base.
6.Toe boards,Fence ,Metal pallets etc.
